July 8, 2026
Turbo technology has undergone rapid development over the past twenty years. What was once a relatively simple mechanical device has now become an intelligent system that continuously adapts to engine load, emission requirements, and driving conditions. One of the key innovations behind this progress is the Variable Geometry Turbocharger (VGT): a smart turbo used in nearly all modern diesel engines and increasingly in gasoline engines as well
Leading OEMs such as Garrett, Holset (Cummins), and BorgWarner have played a key role in the development of VGT technology, delivering higher efficiency, improved drivability, and lower emissions.
In this blog, we explain what VGT technology is, how it works, why it is important for diesel and gasoline engines, and how MasterTurbo supports customers with this type of turbocharger.
A Variable Geometry Turbocharger is a turbocharger equipped with adjustable vanes around the turbine wheel. These vanes change position depending on the engine's demand, actively controlling exhaust gas flow and turbine speed.
A typical VGT system consists of:
These components work together to create a flexible turbocharger that continuously adapts to engine operating conditions.

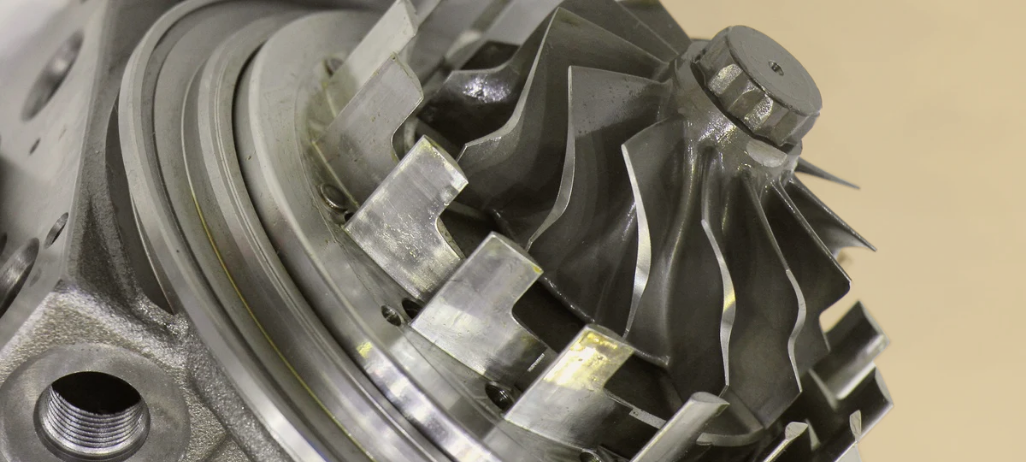

The heart of a VGT is the variable vane mechanism. By changing the angle and spacing of the vanes, the turbocharger can adjust its internal flow geometry.
This helps prevent turbo lag, which is especially important for heavy-duty diesel engines operating under high loads at low RPM.
This protects the turbocharger from overspeed while maintaining power output.
Most modern VGTs from Garrett, Holset and BorgWarner use electronic actuators. These provide:
Electronic actuation also enables complex control strategies that are essential for EGR systems and compliance with Euro 5 and Euro 6 emissions standards.
VGTs have become increasingly common in both light- and heavy-duty diesel engines. The main advantages are:
The vanes close quickly under low-load conditions, generating strong torque for:
This provides a smoother and more efficient driving experience, especially when towing or operating under heavy loads.
VGTs help regulate exhaust gas flow and temperature, enabling:
Because boost pressure is optimised across the entire operating range, engines can run more efficiently with improved combustion stability.
Smaller engines equipped with VGTs can deliver the same or even higher power output than larger engines, helping to reduce both fuel consumption and CO₂ emissions.
Garrett, Holset, and BorgWarner supply VGT systems for leading European and global diesel platforms.
In the past, VGTs were used exclusively in diesel engines because exhaust temperatures in gasoline engines were too high. Thanks to advances in materials technology, such as those used in modern Garrett turbochargers, VGTs can now also be applied in gasoline engines.
Benefits for gasoline engines include:
Modern gasoline VGTs are manufactured from materials capable of withstanding exhaust temperatures above 1000°C.
Although VGTs are highly efficient, their complex mechanisms and actuators can be susceptible to wear and failure over time.
This is common in diesel engines that produce large amounts of soot. Symptoms include:
One of the most common VGT-related failures:
This may be caused by:
These symptoms may indicate:
Driving with a faulty VGT can lead to DPF (Diesel Particulate Filter) issues, reduced engine performance, or even engine damage.
MasterTurbo specialises in Garrett, Holset, and BorgWarner VGT systems and offers:
Whether you need a replacement turbocharger, actuator support, or technical advice, our specialists are ready to help at sales@masterturbo.nl.
